| Model | Conductor Construction (No./mm) | Insulation Thickness (mm) | Jacket Thickness (mm) | Overall Diameter (mm) | Conductor D.C. Resistance at 20°C (Ω/Km) |
|---|---|---|---|---|---|
| 2×1.5 | 30/0.25 | 0.8 | 1.0 | 8.3 ± 0.3 | 13.3 |
| 2×2.5 | 49/0.25 | 0.9 | 1.1 | 10 ± 0.3 | 7.98 |
| 3×1.5 | 30/0.25 | 0.8 | 1.1 | 8.9 ± 0.3 | 13.3 |
| 3×2.5 | 49/0.25 | 0.9 | 1.1 | 10.5 ± 0.4 | 7.98 |
| 4×1.5 | 30/0.25 | 0.8 | 1.1 | 9.9 ± 0.4 | 13.3 |
| 4×2.5 | 49/0.25 | 0.9 | 1.2 | 11.8 ± 0.4 | 7.98 |
| 5×0.75 | 24/0.20 | 0.6 | 1.0 | 8.4 ± 0.3 | 26.0 |
| 5×1.0 | 32/0.20 | 0.6 | 1.1 | 8.8 ± 0.3 | 19.5 |
| 5×1.5 | 30/0.25 | 0.8 | 1.1 | 10.8 ± 0.4 | 13.3 |
| 5×2.5 | 49/0.25 | 0.9 | 1.3 | 13.2 ± 0.4 | 7.98 |

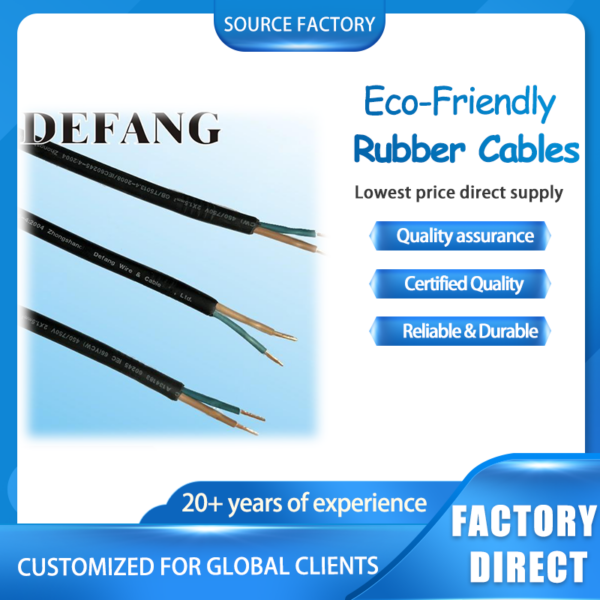

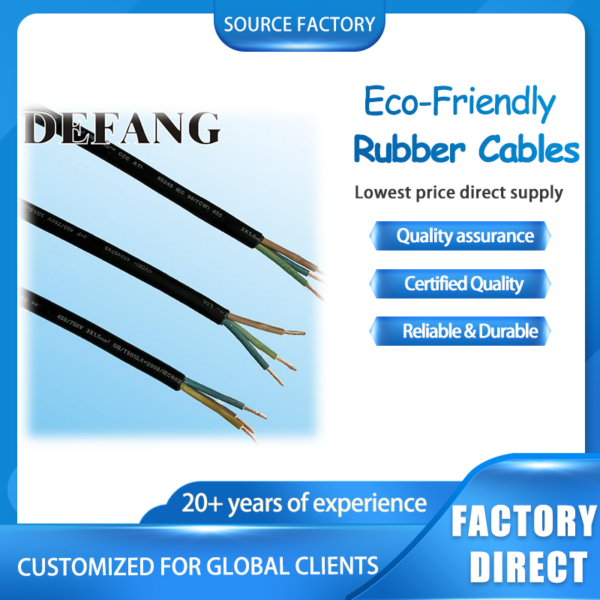

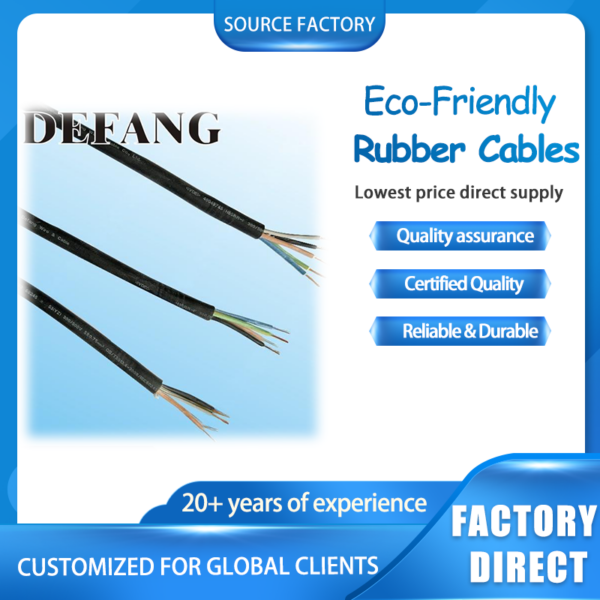

HO5RR-F
